CWWK S7 N150 Mini PC Firewall with 2 Port 10GbE RJ45 + 2 Port 2.5GbE LAN

The CWWK S7 Pro is a 10GbE firewall mini PC powered by the Intel N150 processor. It combines two Intel X550-T2 10GbE RJ45 ports, two Intel i226-V 2.5GbE ports, DDR5 memory, flexible NVMe and SATA storage, dual HDMI output and an aluminum fin chassis with built-in active cooling for high-speed firewall, routing and home lab deployments.

Intel N150 10GbE Firewall Platform

The current S7 Pro configuration uses the Intel N150 processor for high-speed routing, firewall services and compact always-on network systems.

Intel N150 Efficient processor for firewall, routing, gateway and lightweight virtualization workloads.

10GbE Networking Designed for environments that need network bandwidth beyond standard 1GbE or 2.5GbE appliances.

Built-in Cooling An internal cooling fan works with the copper heat block and aluminum chassis for sustained network workloads.

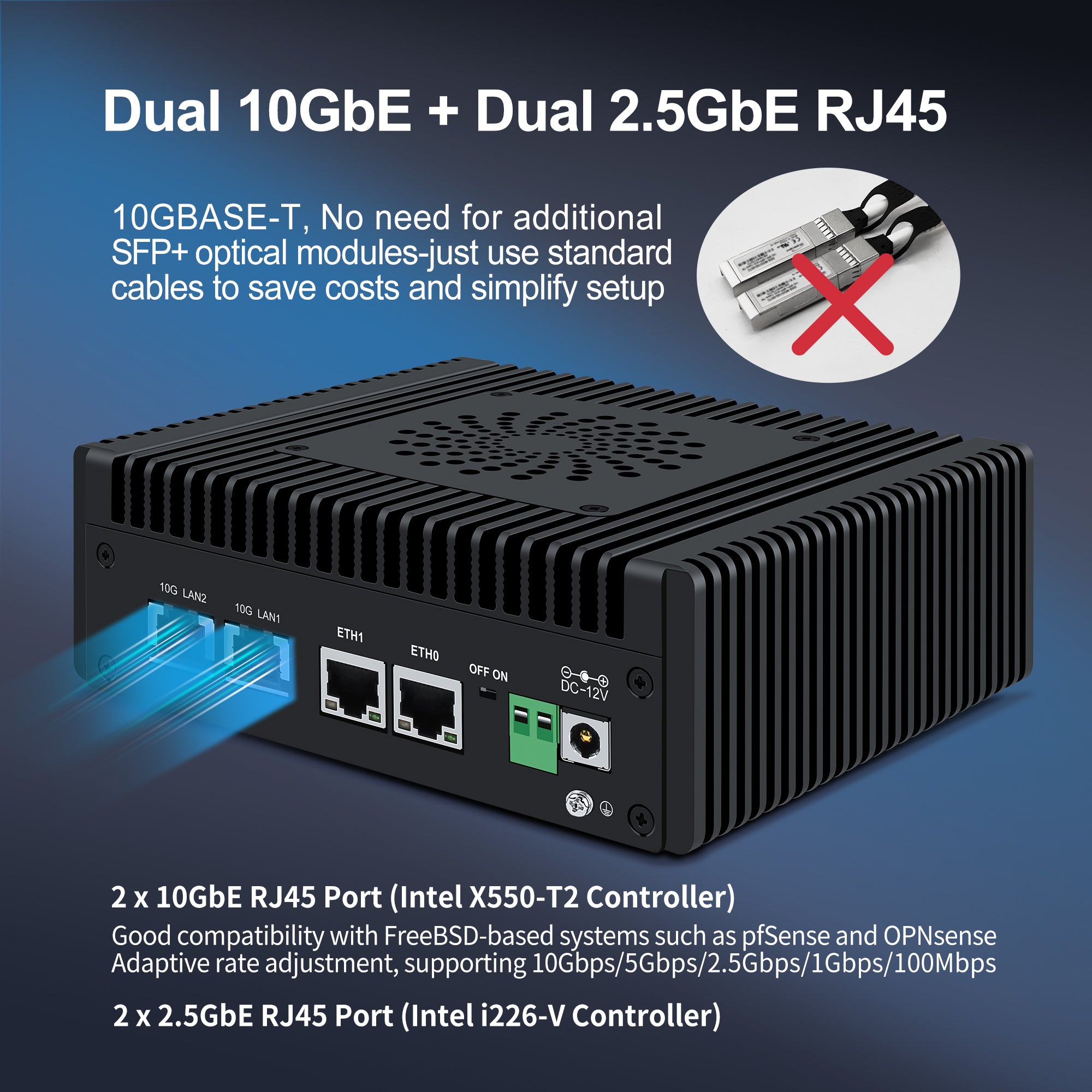

Dual 10GbE RJ45 with Intel X550-T2

S7 Pro provides two 10GBASE-T RJ45 interfaces through the Intel X550-T2 controller, allowing direct use of compatible copper Ethernet cabling without requiring SFP+ optical modules.

2 × 10GbE RJ45 High-speed copper Ethernet interfaces for firewall, NAS, server and network backbone connectivity.

Intel X550-T2 Integrated Intel dual-port controller for 10GBASE-T Ethernet networking.

No SFP+ Module Required RJ45 connectivity simplifies deployment where compatible copper Ethernet infrastructure is already available.

Dual Intel i226-V 2.5GbE Network Ports

Two additional Intel i226-V 2.5GbE RJ45 interfaces provide flexible connections for WAN, LAN, management networks and segmented local network zones.

2 × 2.5GbE RJ45 Independent multi-gigabit Ethernet interfaces complement the two 10GbE RJ45 ports.

Intel i226-V Dedicated Intel controllers provide 2.5GbE connectivity for firewall and routing deployments.

CWWK S7 Pro front and rear I/O with dual Intel X550-T2 10GbE RJ45 and dual Intel i226-V 2.5GbE ports

DDR5 Memory for Firewall and Home Lab Workloads

S7 Pro provides one DDR5 SO-DIMM slot for firewall, routing and local-service deployments.

1 × SO-DIMM Single DDR5 laptop-memory slot for compact system configurations.

DDR5 4800 Supports DDR5 4800 memory and compatible higher-rated DDR5 modules.

Up to 48GB Supports up to 48GB system memory according to the current product specification.

Native NVMe, Optional Second NVMe and SATA Storage

The S7 Pro combines one native M.2 2280 NVMe slot, one M.2 E-Key expansion interface and one SATA 3.0 connection for flexible boot and data storage.

1 × Native M.2 NVMe Dedicated M.2 2280 NVMe interface for the primary system or storage SSD.

1 × M.2 E-Key Supports WiFi / Bluetooth or can be converted to an additional M.2 NVMe interface through the corresponding adapter.

1 × SATA 3.0 Supports an additional SATA SSD or HDD through the onboard SATA connector and power interface.

The M.2 E-Key interface can be used either for a wireless module or converted to a second NVMe storage interface. These two uses share the same expansion slot and cannot be used simultaneously.

CWWK S7 Pro internal layout showing motherboard, NVMe, SATA and cooling structure

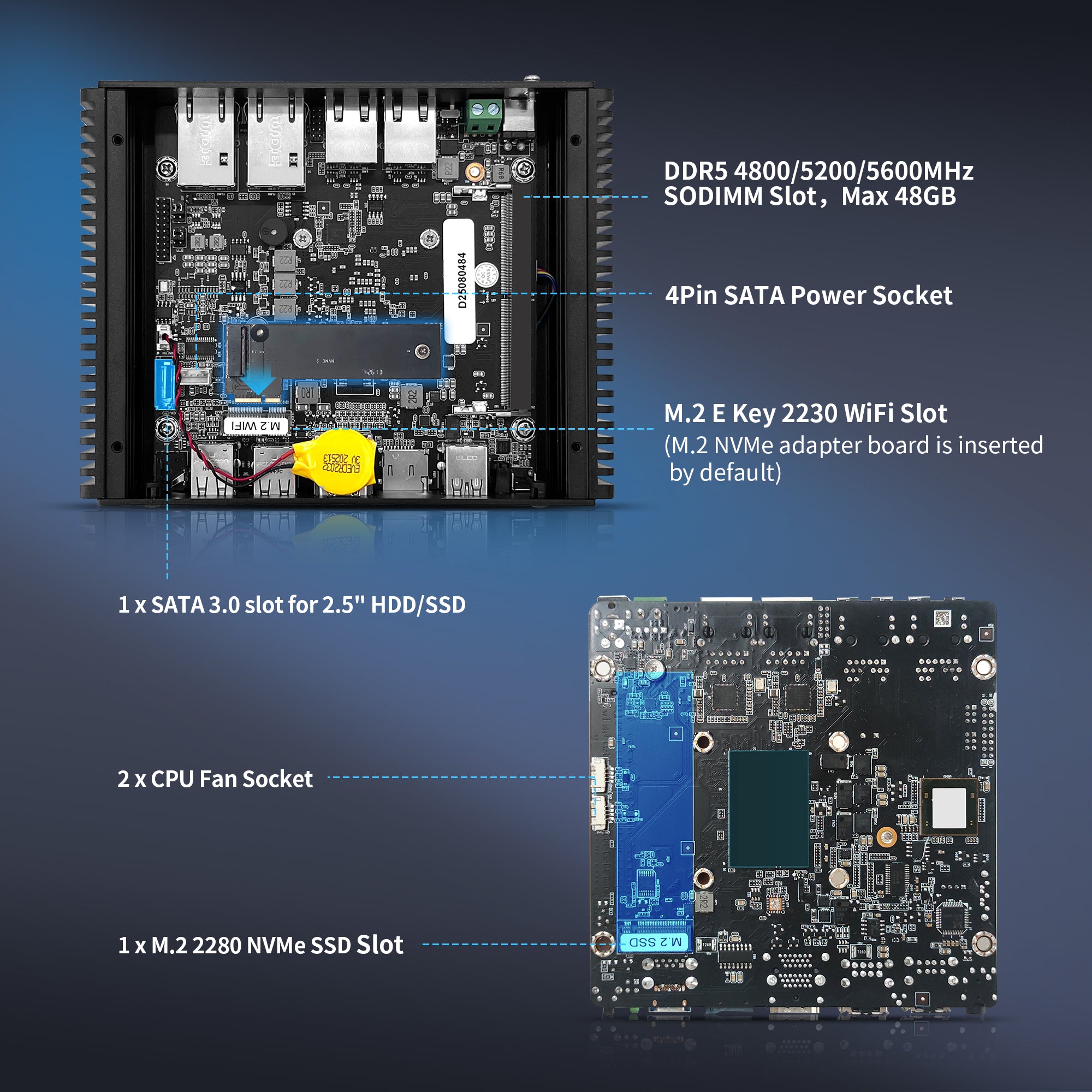

S7 Pro Motherboard and Internal Interface Layout

The CW-MINI-TWL-20G motherboard integrates Intel X550-T2 10GbE, Intel i226-V 2.5GbE, DDR5 memory, NVMe storage, M.2 E-Key expansion and SATA connectivity into one compact network appliance platform.

CWWK S7 Pro motherboard interface diagram with 10GbE, 2.5GbE, DDR5, NVMe, SATA and WiFi interfaces

Copper Heat Block with Built-in Fan Cooling

S7 Pro combines a copper heat block, aluminum fin chassis and built-in cooling fan to transfer and dissipate heat during sustained 10GbE firewall and network workloads.

The copper thermal structure moves heat away from the processor, while the aluminum fins provide additional surface area and the built-in fan improves airflow through the chassis.

Copper Heat Block Built-in Fan Aluminum Fins Active Airflow

CWWK S7 Pro copper heat block, built-in cooling fan and aluminum fin thermal structure

S7 Pro also supports an optional 80 × 80 × 10 mm 8010 chassis fan when additional airflow is required.

View Compatible 8010 Fan

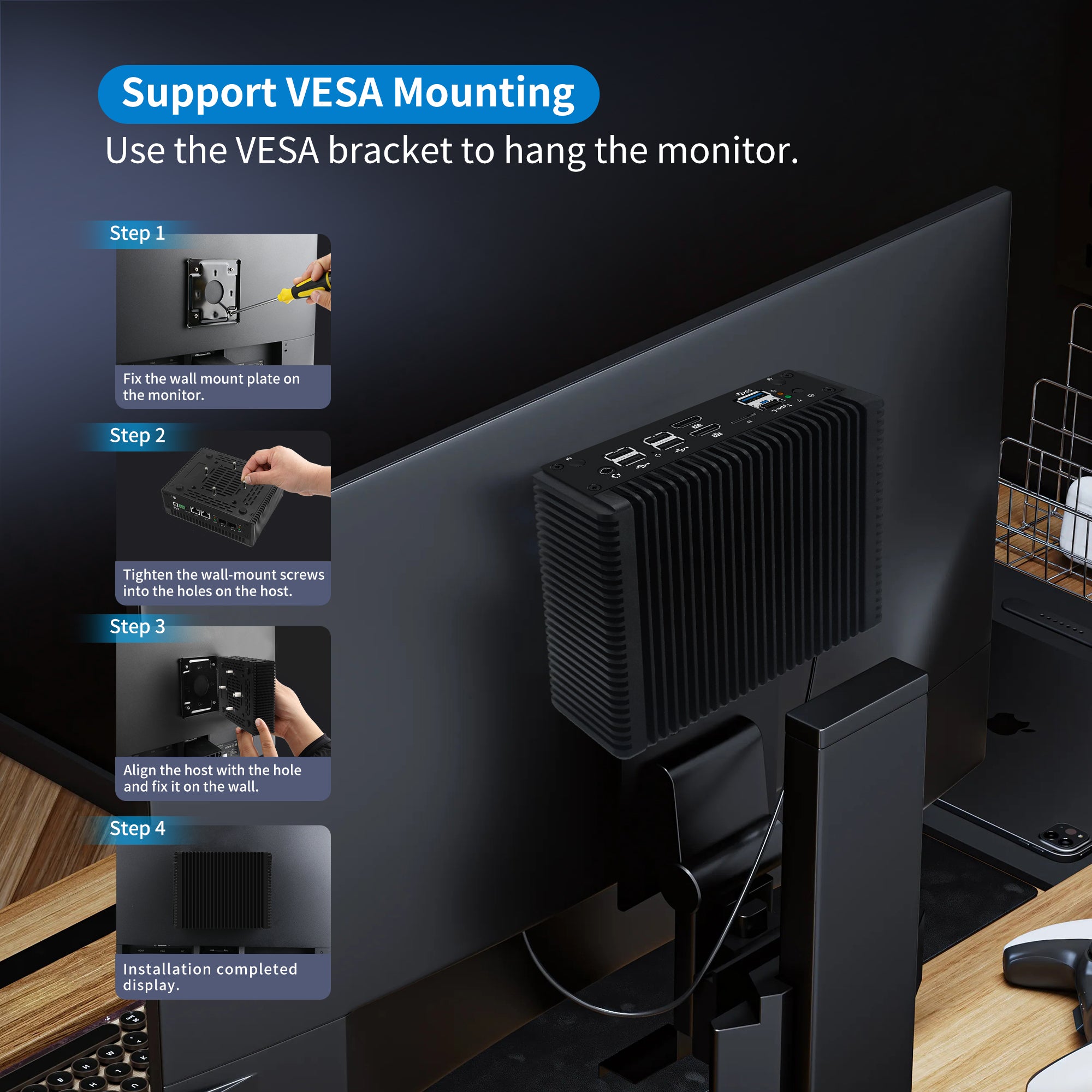

Compact Aluminum Chassis with VESA Mounting

S7 Pro measures 162 × 126.5 × 55 mm and supports VESA mounting for flexible installation behind displays, on compatible mounting surfaces or in space-constrained network environments.

162 × 126.5 × 55 mm Compact aluminum enclosure for desktop and wall-mounted deployment.

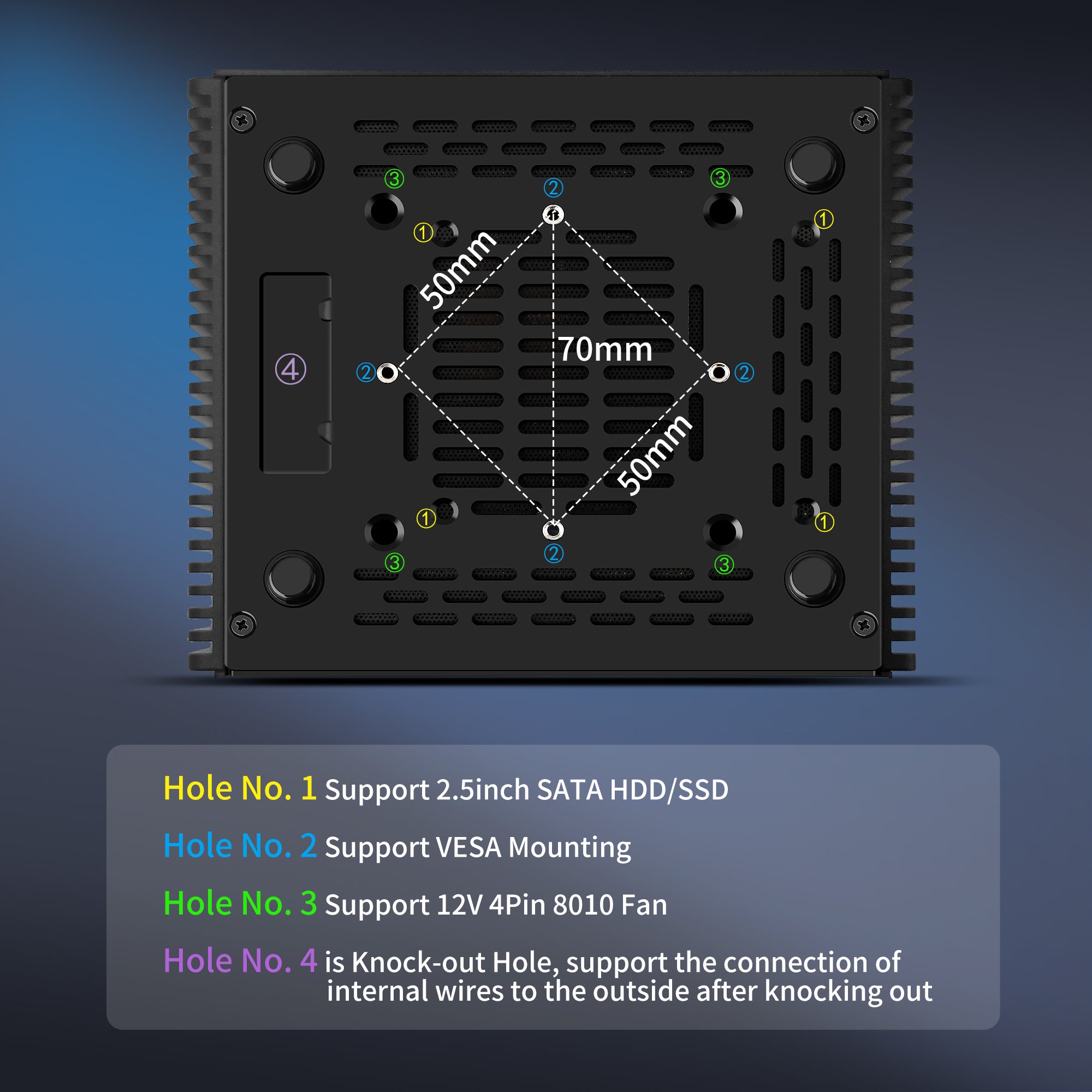

VESA Support Supports VESA mounting through the mounting points on the bottom chassis.

Optional 8010 Fan An additional chassis fan can be installed when more airflow is required.

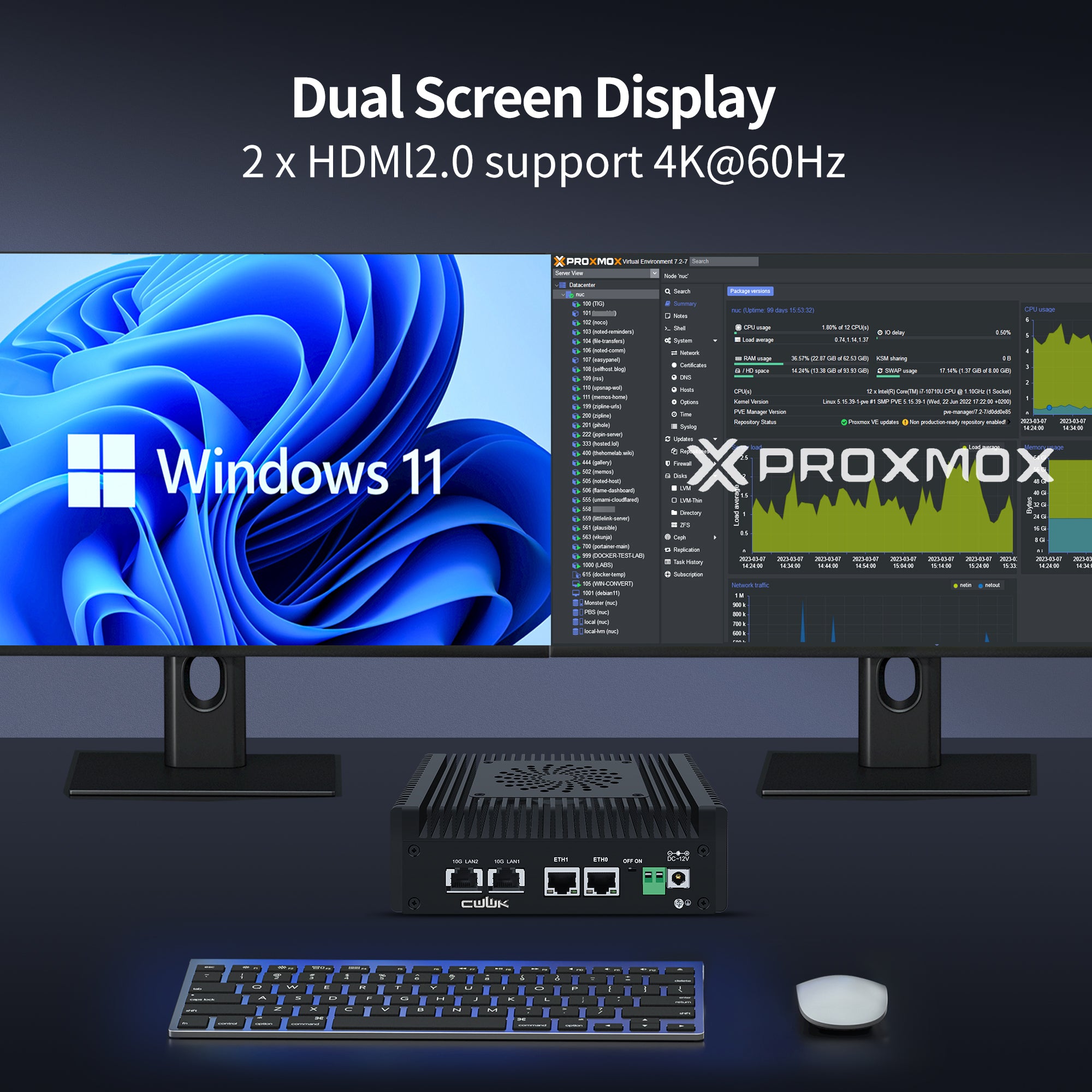

Dual HDMI 2.0 Display and System Connectivity

S7 Pro provides two HDMI 2.0 interfaces for local display and system management. The USB-C interface operates at USB 2.0 speed for data connectivity and does not provide display output.

2 × HDMI 2.0 Dual digital display outputs with support for compatible 4K displays.

USB-C Data Port USB-C operates at USB 2.0 data speed and is not used as a display output.

TF Card Slot Supports data storage and compatible system boot applications.

10GbE Firewall, Routing and Home Lab Deployment

Dual 10GbE RJ45, dual 2.5GbE, DDR5 memory and flexible storage make S7 Pro suitable for high-speed network infrastructure without requiring SFP+ transceivers.

Firewall & Routing 10GbE and 2.5GbE interfaces provide flexible options for WAN, LAN, VLAN and segmented network deployments.

10GbE Home Lab Suitable for high-speed connections between NAS, servers, workstations and local services.

RJ45 Network Upgrade 10GBASE-T connectivity allows high-speed networking over compatible copper Ethernet infrastructure.

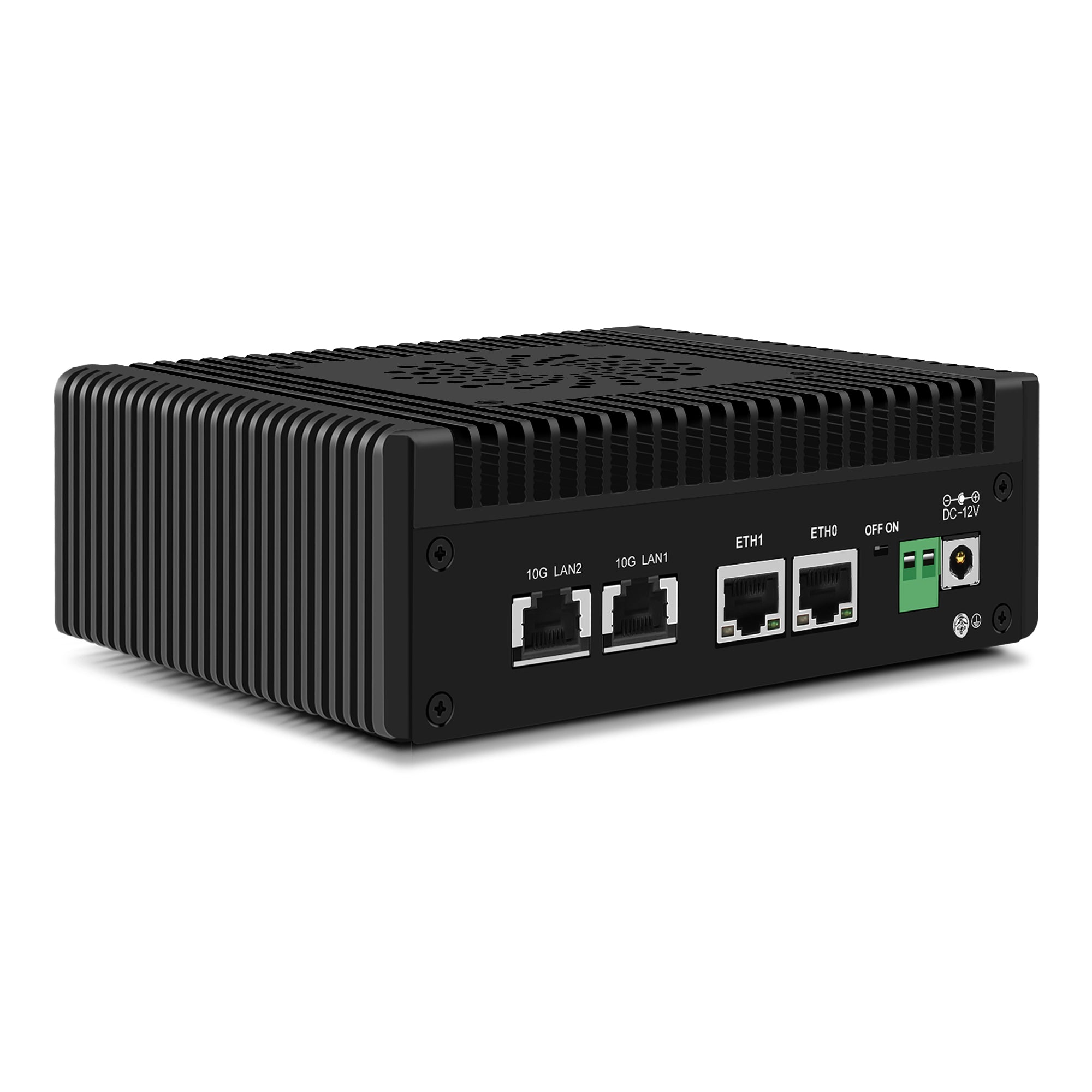

Front and Rear I/O Connectivity

2 × Intel X550-T2 10GbE RJ45
2 × Intel i226-V 2.5GbE RJ45
2 × HDMI 2.0
1 × USB 3.2 Gen 1
4 × USB 2.0
1 × USB-C, USB 2.0 data only
1 × TF card slot
1 × Audio port
2 × WiFi antenna holes
1 × Phoenix terminal power input
1 × DC 12V input
Auto power-on DIP switch

CWWK S7 Pro front and rear connectivity with dual 10GbE RJ45 and dual 2.5GbE ports

Technical Specifications

Model	CWWK S7 Pro
Processor	Intel N150
10GbE Network	2 × Intel X550-T2 10GbE RJ45
2.5GbE Network	2 × Intel i226-V 2.5GbE RJ45
Memory	1 × SO-DIMM DDR5 4800, compatible with higher-rated DDR5 modules, up to 48GB
Native NVMe	1 × M.2 2280 NVMe SSD slot
Expansion	1 × M.2 E-Key 2230 for WiFi / Bluetooth; convertible to an additional M.2 NVMe interface through a compatible adapter
SATA	1 × SATA 3.0 connector with 4-pin SATA power
Display	2 × HDMI 2.0
USB	1 × USB 3.2 Gen 1 + 4 × USB 2.0 + 1 × USB-C at USB 2.0 speed
Card Reader	1 × TF card slot
Audio	Audio interface based on Realtek ALC897
Serial	2 × RS232 / RS485 switchable COM headers
Power	DC 12V + Phoenix terminal power input
Cooling	Copper heat block + aluminum fin chassis + built-in cooling fan; optional 8010 chassis fan supported
Mounting	VESA mounting supported
Dimensions	162 × 126.5 × 55 mm
Chassis	Aluminum fin chassis with built-in active cooling

FAQ

Does S7 Pro use 10GbE RJ45 or SFP+?

S7 Pro uses two 10GBASE-T RJ45 ports based on the Intel X550-T2 controller. It does not use SFP+ ports.

How many network ports does S7 Pro have?

S7 Pro provides four Ethernet ports in total: two Intel X550-T2 10GbE RJ45 ports and two Intel i226-V 2.5GbE RJ45 ports.

What processor is currently available for S7 Pro?

The current available S7 Pro configuration uses the Intel N150 processor.

How much DDR5 memory does S7 Pro support?

S7 Pro provides one DDR5 SO-DIMM slot and supports up to 48GB according to the current product specification.

How many NVMe SSDs can S7 Pro use?

S7 Pro has one native M.2 NVMe slot. The M.2 E-Key wireless slot can also be converted to an additional NVMe interface through a compatible adapter.

Can WiFi and the second NVMe SSD be used at the same time?

No. The optional second NVMe configuration uses the M.2 E-Key expansion slot normally used for WiFi or Bluetooth, so the two functions share the same slot.

Does S7 Pro support SATA storage?

Yes. S7 Pro provides one SATA 3.0 connector and corresponding 4-pin SATA power for an additional SATA SSD or HDD.

Does the USB-C port support display output?

No. The S7 Pro USB-C interface operates at USB 2.0 data speed. Display output is provided through the two HDMI 2.0 interfaces.

How is S7 Pro cooled?

S7 Pro uses a copper heat block, aluminum fin chassis and built-in cooling fan. The chassis also supports an optional 8010 fan when additional airflow is required.

Does S7 Pro support VESA mounting?

Yes. S7 Pro supports VESA mounting through the mounting points on the bottom of the chassis.

Can an additional 8010 fan be installed?

Yes. S7 Pro supports an optional 80 × 80 × 10 mm 12V 4-pin chassis fan. View the compatible CWWK 8010 fan.
